CH Series Housing
Modular “plug-in” Electronic packaging system
*Made from Lexan 141R polycarbonate (PC)
- Extremely rugged durable protection
- Very high impact resistance, UL approved material
- Excellent insulation resistance and tensile strength characteristics
- Interchangeable components are easily assembled with ease of testing and service

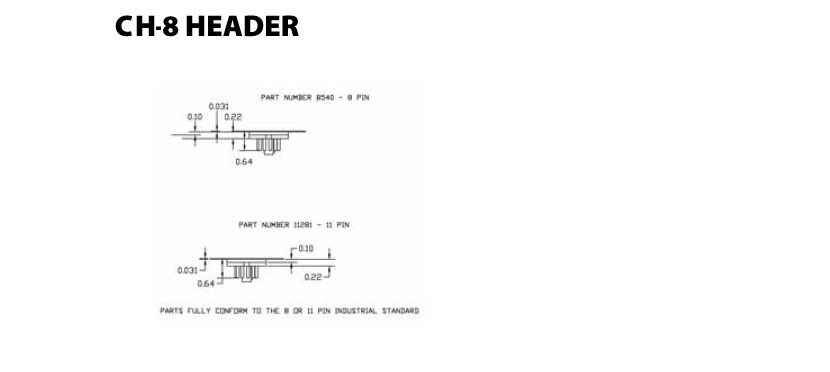

- Designed to fit all standard socket configurations
- Made in U.S.A.
- Easily Imprinted
- All standard components available from a choice of stock colors and materials to meet yours needs
- Also available in custom colors per a quantity size of ?.
- Series CH housings can be modified or customized to meet your specific applications, contact us for a quote
- Housing Material: Polycarbonate
- Flammability: V0-V2
- Heat Distortion:
- Polystyrene: 155°C - 170°C
- Lexan: 280°C - 298°C
- Nylon: 275°C - 300°C
- Melting temperature (Tm) 267 °C
- Surface resistivity: 1015 Ω/sq
- Volume resistivity (ρ): 1012–1014 Ω·m
CH Specifications:
- Width (mm / in): 36.3 / 1.43
- Length (mm): 62.5 / 2.46
- Height (mm): 57.4 / 2.26
